Industrial Boiler Pipeline Cleaning Machine 110V/220V Commercial Duct Rust Residue Pipe Dust Removal with 26.3ft Flexible Shaft 0.47-1.42inch Pipe Diameter 3pc Cleaning Tools

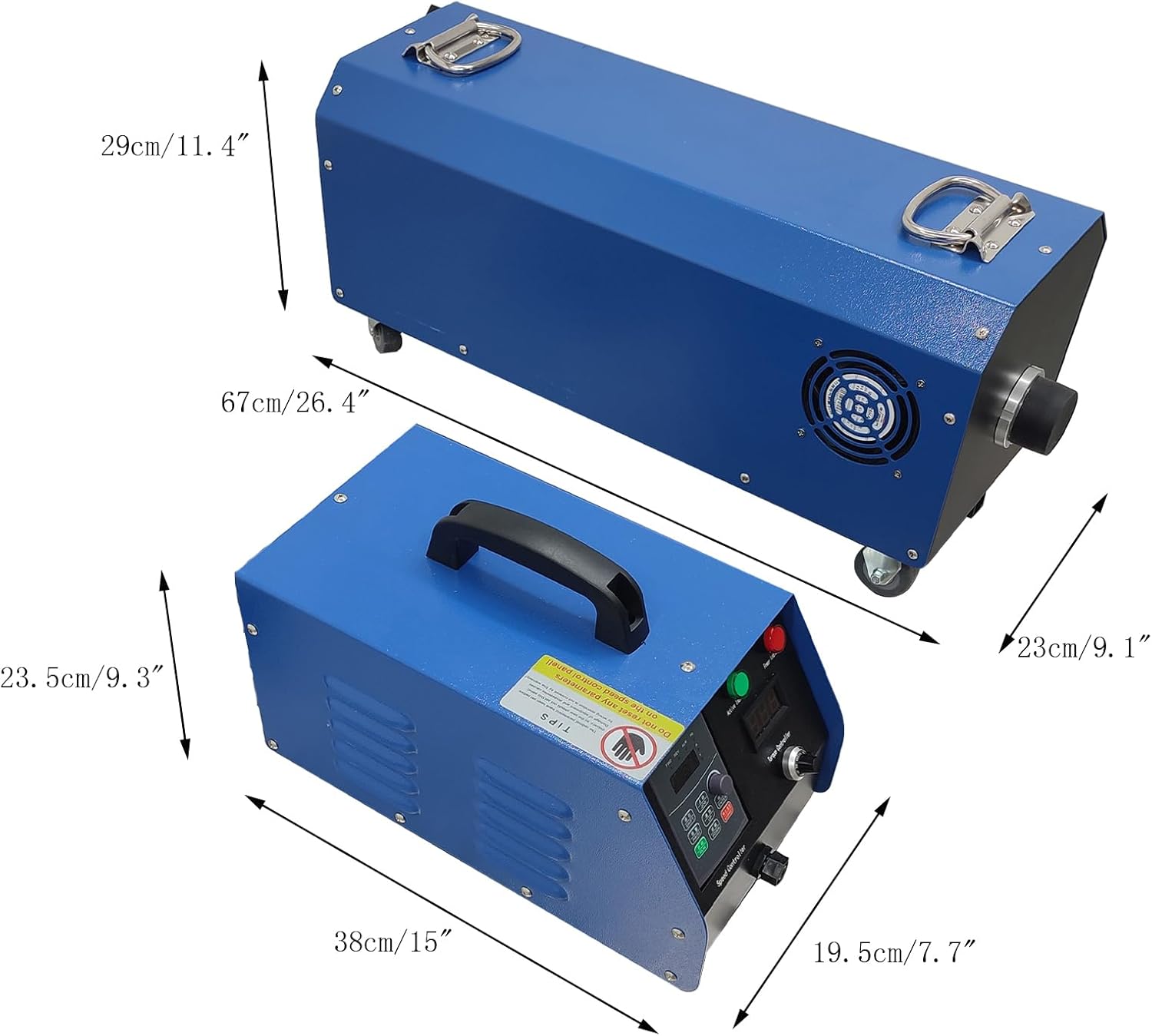

Parameters Model 022837 Total Power 1500W Power Voltage 220V/50HZ Single-phase electricity (A 110V transformer is given as a present. If your power supply is 110V, you can connect the machine to the transformer and then connect the transformer to your 110V power supply.) Rotating Speed 0～1400r/min Size of Main Unit 67*23*29cm (26.4*9.1*11.4 inches) Size of Control Cabinet 38*19.5*23.5cm (15*7.7*9.3 inches) Flexible Shaft 8M (26.3ft) Applicable Pipe Diameter 12-36mm Cleaning Tools Nylon brush: 17.5mm*6 pcs Nylon brush: 34mm*4 pcs Alloy drill bit: 12mm*1 piece Item Number (022837): 1 x Industrial Boiler Pipeline Cleaning Machine 220V

• Capacity: Applicable ipe diameter is 12-36mm; cleaning tool size is nylon brush: 17.5mm * 6 pieces; Nylon brush: 34mm * 4 pieces; Alloy drill bit: 12mm x 1 piece. The speed can be adjusted within the range of 0-1400r/min, using stepless variable frequency speed regulation. The torque knob is also designed for torque control during operation.
• High Flexibility: This cleaning machine can easily and smoothly pass through bends, suitable for straight pipes, U-shaped pipes, and S-shaped pipes, with high flexibility and practicality. The cleaning machine adopts a split design, which allows the cleaning machine to enter the inspection hole for cleaning operations, making it more versatile.
• Realized Dry Wet Separation: Water directly enters the flexible shaft without passing through the host, thus preventing water from entering the host. Realize physical descaling and high-definition washing capabilities. The motor drives the flexible shaft and brush/blade to rotate at high speed, and the water flows out from the tail of the flexible shaft through the nylon sleeve, taking away the dirt.
• Working Principle: By using a high-speed rotating brush and rinsing water to remove impurities from the pipe wall, the heat exchange efficiency is ensured, avoiding the decrease in heat exchange efficiency and the increase in system pressure caused by the accumulation of dirt.
• Application:As a professional cleaning equipment, the cleaning machine has a wide range of applications in various industries and fields, suitable for multiple pipelines such as biomass boilers, oil fired boilers, coal-fired boilers, and gas boilers.
